Rectangular Magnetic Downlight

The Rectangular Magnetic Downlight combines a compact brass body with a focused 5W COB light source for architectural magnetic track systems. Made from 100% brass, the fixture uses an OSRAM COB LED and operates on DC24V.

Three beam-angle options—15°, 24° and 36°—allow the fitting to handle anything from narrow accent lighting to a broader focused beam. Meanwhile, the compact Ø55 × H100 mm dimensions keep the fixture visually controlled on the track.

Choose from gold, black or platinum finishes.

Three Beam Angles

The optical options give designers more control over the lighting effect.

A 15° beam produces the narrowest distribution and works well when the design calls for concentrated accent lighting. The 24° option offers a balanced medium beam, while 36° spreads the light across a wider target area.

This flexibility makes the Rectangular Magnetic Downlight useful for highlighting artwork, decorative objects, display surfaces, furniture and architectural details.

OSRAM COB 5W

The fixture uses a 5W OSRAM COB LED.

COB technology concentrates the LED source within a compact optical area, making it particularly suitable for controlled spotlight applications. Combined with the available beam angles, the fixture creates a defined downward lighting effect without requiring a large spotlight body.

Its compact proportions also allow designers to repeat several modules along one magnetic track without creating a visually heavy ceiling arrangement.

100% Brass Body

The body uses 100% brass and comes in three finishes:

• Gold
• Black
• Platinum

Gold works naturally with timber, bronze, travertine and other warm architectural finishes. Black integrates discreetly with dark tracks and ceilings, while platinum suits cooler metal palettes and contemporary interiors.

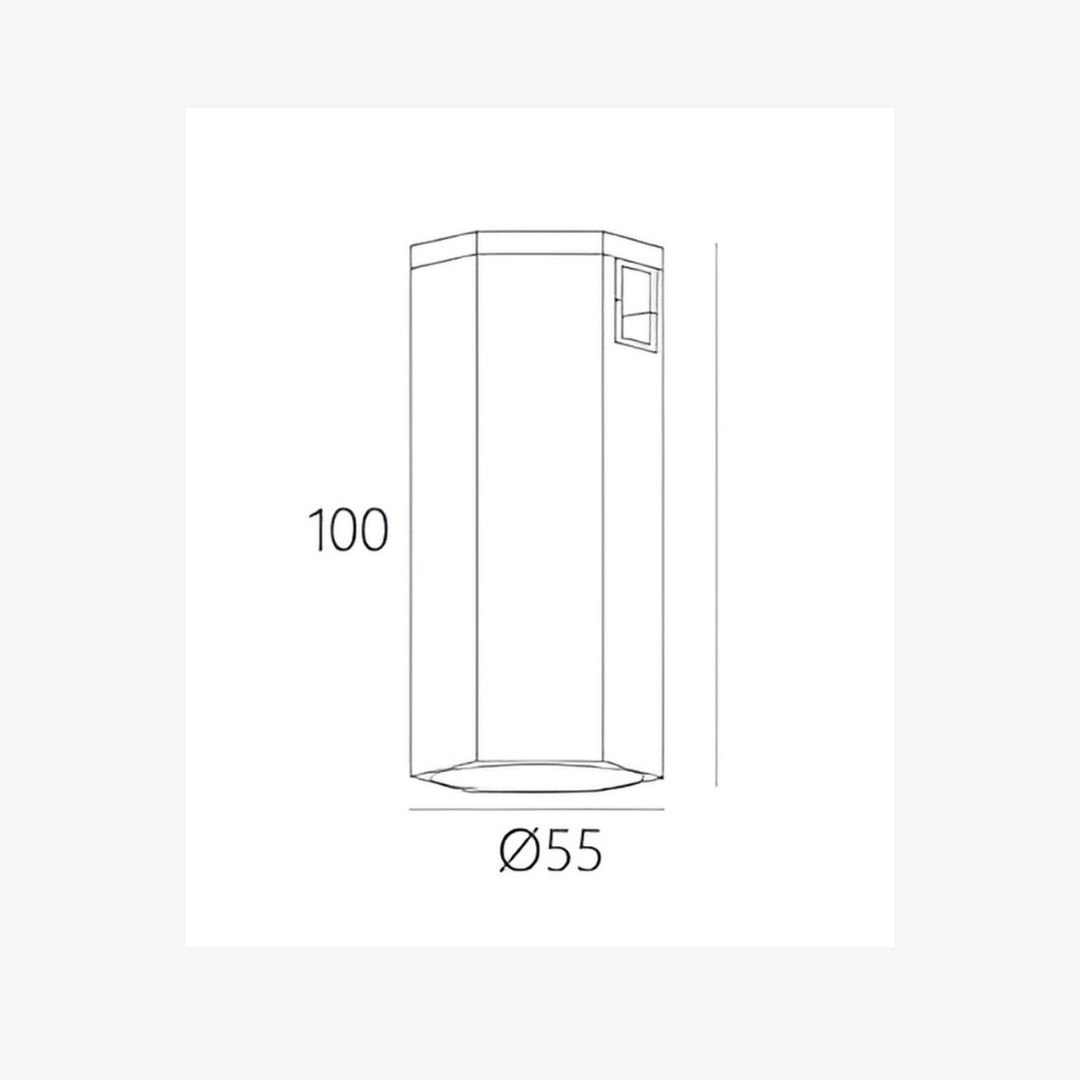

At Ø55 × H100 mm, the fitting maintains a compact architectural profile.

3500K Standard

The standard colour temperature is 3500K.

Additional CCT options include:

• 2700K
• 3000K
• 3500K – Standard
• 4000K
• 4500K
• 5500K

For warmer interiors, 2700K and 3000K coordinate well with timber, brass and warm stone. Meanwhile, 3500K offers a balanced warm-neutral appearance. Higher colour temperatures create a cleaner and more neutral lighting character.

Magnetic Track Integration

The Rectangular Magnetic Downlight operates on DC24V and integrates into a compatible magnetic track lighting system.

Designers can use a single module for targeted illumination or repeat several fittings along the track. In addition, the downlight can work alongside linear lights, decorative magnetic fixtures and other compatible modules to create multiple lighting layers within one track system.

Technical Specifications

Important Note

Note: This product must be used with a compatible power supply and brass magnetic track. For product enquiries, project requirements, availability or pricing, please request a quote from our team.
