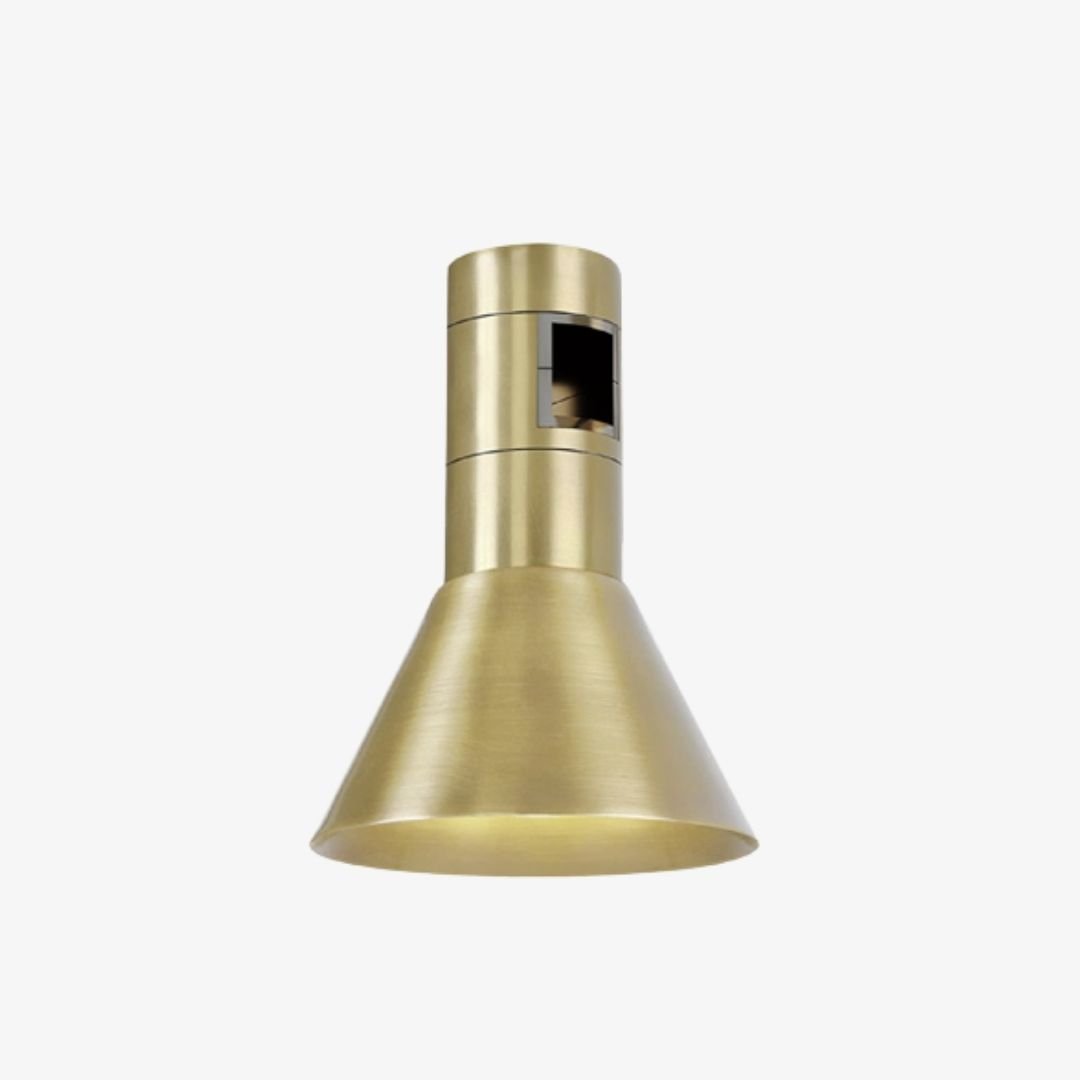

Axis Cone Spot Magnetic Light

The Axis Cone Spot Magnetic Light is a focused architectural spotlight built from 100% brass and designed for DC24V magnetic track systems. It uses a 7W LGDTEEN COB LED with selectable 15°, 24° and 36° beam angles, allowing the same fixture family to handle precise accent lighting or a wider focused distribution.

Its flared cone-shaped reflector creates a strong architectural profile while keeping the LED source recessed within the fitting. Four sizes are available—Ø70, Ø80, Ø97 and Ø130 mm—so designers can select the visual scale that best suits the ceiling height, interior proportions and lighting composition.

The Axis Cone Spot Magnetic Light comes in gold, black and platinum finishes.

Axis Cone Spot Magnetic Light Design

The flared cone is the defining feature of this magnetic spotlight.

Rather than using a narrow cylindrical body, the reflector widens toward the aperture. This creates a more visible architectural form while keeping the light directed toward the target area.

Four fixture sizes allow the design to work at different scales. The compact Ø70 mm version suits smaller spaces and repeated installations, while the larger Ø130 mm version creates a much stronger visual presence.

Designers can therefore maintain the same fixture language throughout a project while adjusting the physical scale from one area to another.

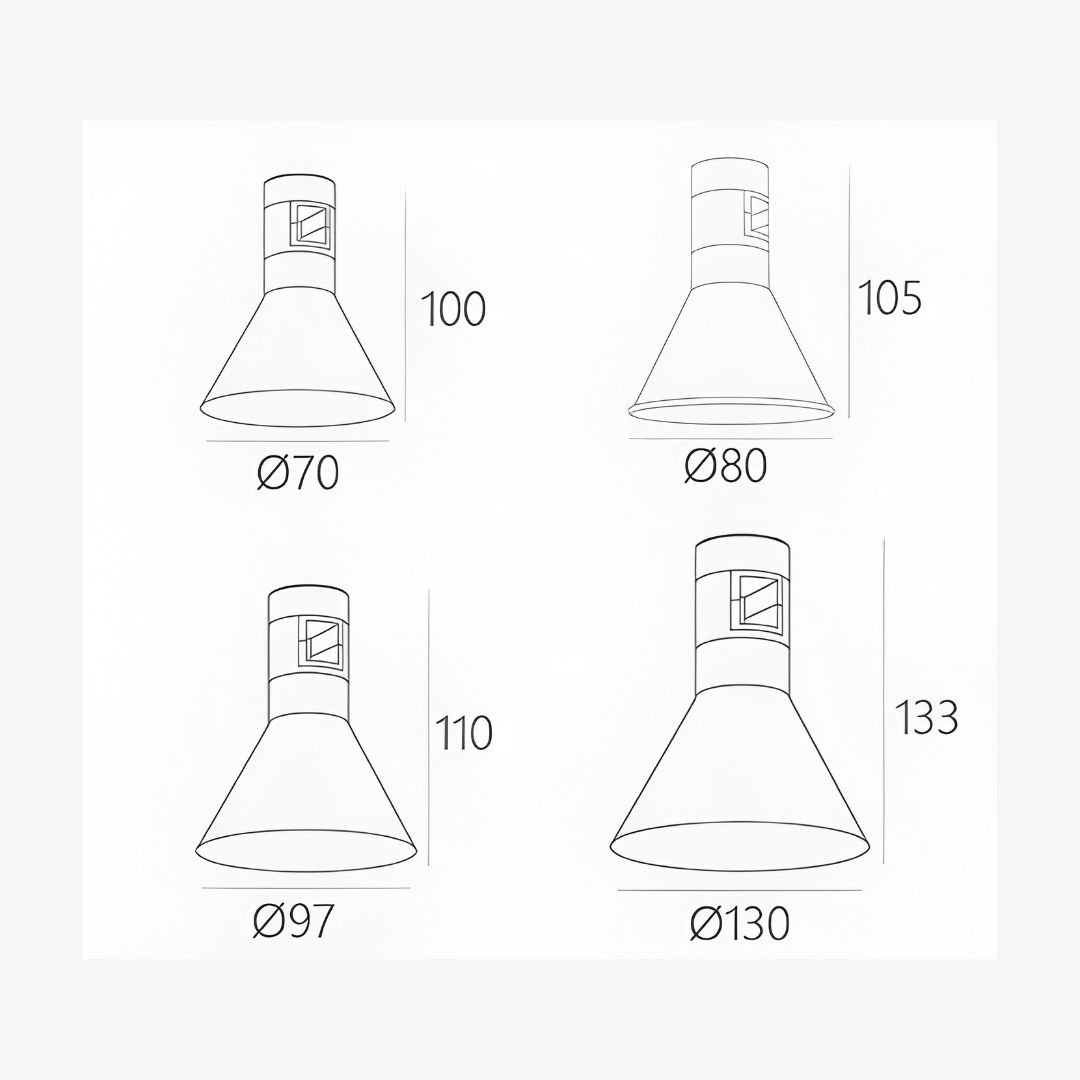

Axis Cone Spot Magnetic Light Size Options

The Ø70 mm model creates the most compact appearance.

Ø80 and Ø97 mm provide progressively larger cone profiles, while the Ø130 × H133 mm version gives the fitting the strongest decorative and architectural presence.

Axis Cone Spot Magnetic Light Beam Options

Three beam angles are available:

• 15° – narrow and concentrated
• 24° – medium focused beam
• 36° – wider accent distribution

The 15° beam works well for small objects, artwork and precise architectural details.

A 24° beam offers a balanced choice for general accent lighting, while 36° covers a broader surface without losing the directional character of the spotlight.

This optical flexibility allows several Axis Cone Spot magnetic lights to share one track while performing different lighting tasks.

7W LGDTEEN COB LED

A 7W LGDTEEN COB LED forms the light source.

COB construction concentrates the emitting area at the centre of the optical system, making it well suited to the fixture’s 15°, 24° and 36° beam options.

Within a layered magnetic lighting scheme, Axis Cone Spot fixtures can handle focused accent lighting while magnetic linear lights provide general illumination and decorative magnetic modules add visual interest.

100% Brass Magnetic Spotlight

The Axis Cone Spot Magnetic Light uses 100% brass and comes in three finish options:

• Gold
• Black
• Platinum

Gold creates a warmer architectural character and coordinates naturally with timber, travertine, marble and brass details.

Black integrates more discreetly into dark magnetic tracks and ceilings, while platinum suits cooler contemporary material palettes.

Axis Cone Spot Magnetic Light CCT Options

The standard colour temperature is 3500K.

Optional versions include:

• 2700K
• 3000K
• 3500K – Standard
• 4000K
• 4500K
• 5500K

2700K and 3000K suit warmer residential, hospitality and boutique interiors. Meanwhile, 3500K creates a balanced warm-neutral appearance. Higher CCT options produce a cleaner and more neutral white light.

Axis Cone Spot for DC24V Magnetic Track Systems

The Axis Cone Spot Magnetic Light operates on DC24V and connects to a compatible magnetic track lighting system.

Designers can use the spotlight individually or repeat several units along the track for artwork, feature walls, retail displays, furniture and architectural details. Different sizes and beam angles can also work together while maintaining the same cone-shaped design language.

Technical Specifications

Important Note

Note: This product must be used with a compatible power supply and brass magnetic track. For product enquiries, project requirements, size selection, availability or pricing, please request a quote from our team.
