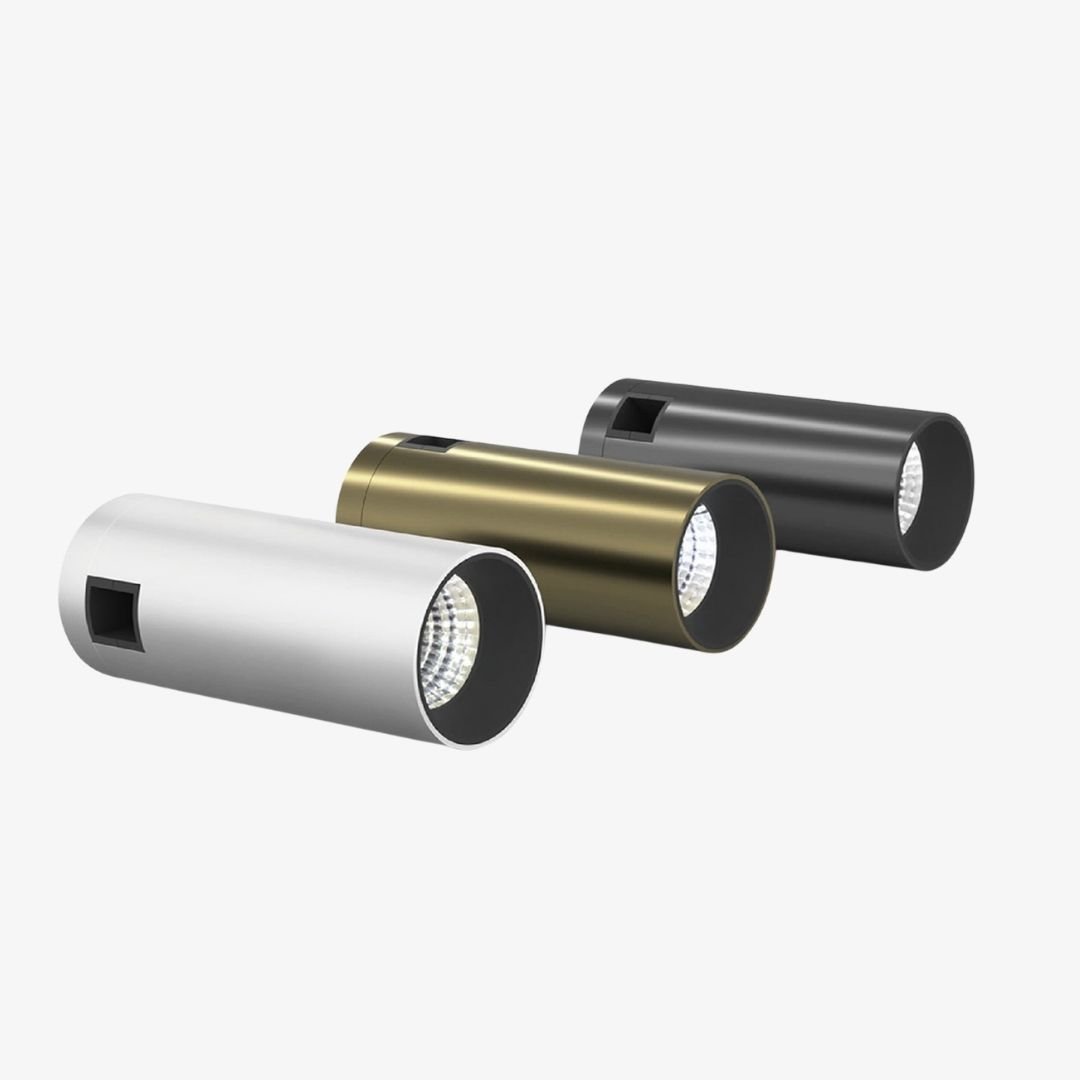

Axis Cylinder Spot Magnetic Light

The Axis Cylinder Spot Magnetic Light is a compact architectural spotlight designed for precise accent lighting within DC24V magnetic track systems. Made from 100% brass, it uses a 7W LGDTEEN COB LED with selectable 15°, 24° and 36° beam angles.

Its clean cylindrical body keeps the fixture visually controlled while the recessed optical opening concentrates attention on the light rather than the LED source. Three body sizes are available—Ø30 × H100 mm, Ø30 × H120 mm and Ø50 × H120 mm—giving designers flexibility when selecting the scale of the magnetic spotlight.

The Axis Cylinder Spot comes in gold, black and platinum finishes.

Axis Cylinder Spot Magnetic Light Design

The simple cylindrical form makes this fixture suitable for contemporary architectural lighting.

Unlike decorative magnetic modules, the Axis Cylinder Spot focuses on controlled directional illumination. Its compact proportions allow several spotlights to sit along the same magnetic track without making the ceiling composition visually heavy.

The three available sizes also let designers maintain the same product language across different areas while changing the physical scale of the fixture.

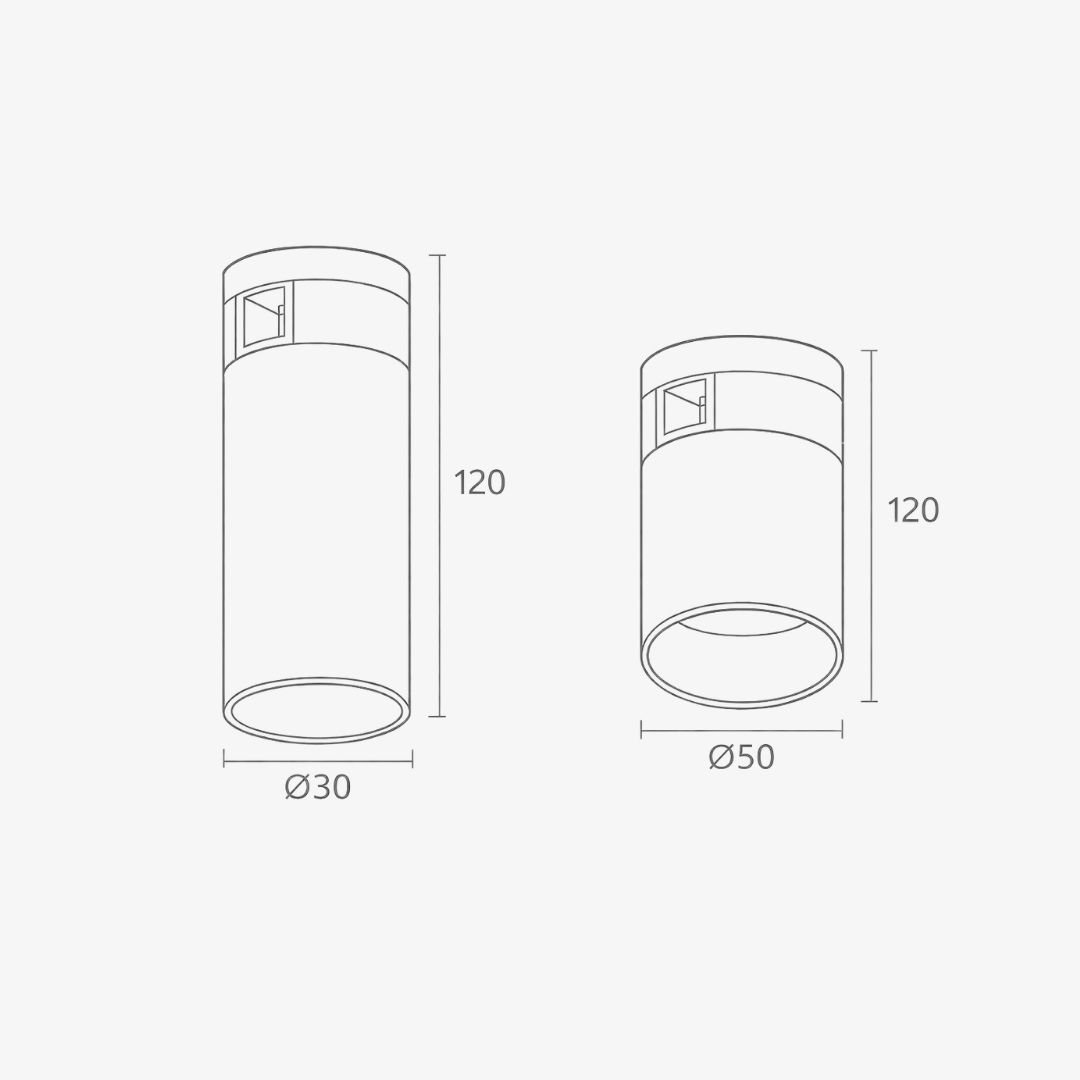

Axis Cylinder Spot Magnetic Light Size Options

The Ø30 × H100 mm version creates the smallest profile.

For a longer cylindrical appearance, choose Ø30 × H120 mm. Meanwhile, the Ø50 × H120 mm version creates a stronger architectural presence while keeping the same overall cylindrical design.

Axis Cylinder Spot Magnetic Light Beam Options

Three beam angles allow the fixture to support different accent-lighting requirements:

• 15° – narrow, concentrated beam
• 24° – balanced medium beam
• 36° – wider focused distribution

The 15° optic works well for small objects, artwork and precise focal points. Meanwhile, 24° suits general accent lighting, while 36° covers a larger surface without losing the directional character of the magnetic spotlight.

Designers can therefore use several Axis Cylinder Spot Magnetic Lights on the same track with different beam angles according to each lighting task.

7W LGDTEEN COB LED

A 7W LGDTEEN COB LED forms the light source.

The concentrated COB configuration works naturally with the 15°, 24° and 36° optical choices, making the fixture suitable for retail displays, artwork, feature walls, furniture, counters and architectural details.

Within a layered magnetic lighting scheme, Axis Cylinder Spot fixtures can handle focused illumination while magnetic linear lights and decorative magnetic modules perform other lighting functions.

100% Brass Magnetic Spotlight

The fixture uses 100% brass and comes in three finish options:

• Gold
• Black
• Platinum

Gold coordinates naturally with timber, marble, travertine and warmer metallic details. Black integrates discreetly with dark magnetic tracks and ceilings, while platinum suits cooler contemporary interiors.

Axis Cylinder Spot Magnetic Light CCT Options

The standard colour temperature is 3500K.

Optional CCT versions include:

• 2700K
• 3000K
• 3500K – Standard
• 4000K
• 4500K
• 5500K

2700K and 3000K suit warmer residential, hospitality and boutique interiors. Meanwhile, 3500K creates a balanced warm-neutral appearance. Higher CCT options provide a cleaner and more neutral white light.

Axis Cylinder Spot for DC24V Magnetic Track Systems

The Axis Cylinder Spot Magnetic Light operates on DC24V and connects to a compatible magnetic track lighting system.

Designers can combine multiple magnetic spotlights with magnetic linear lights, grille modules and decorative magnetic fixtures to create accent, general and decorative illumination within one coordinated track system.

Technical Specifications

Important Note

Note: This product must be used with a compatible power supply and brass magnetic track. For product enquiries, project requirements, size or beam selection, availability or pricing, please request a quote from our team.
