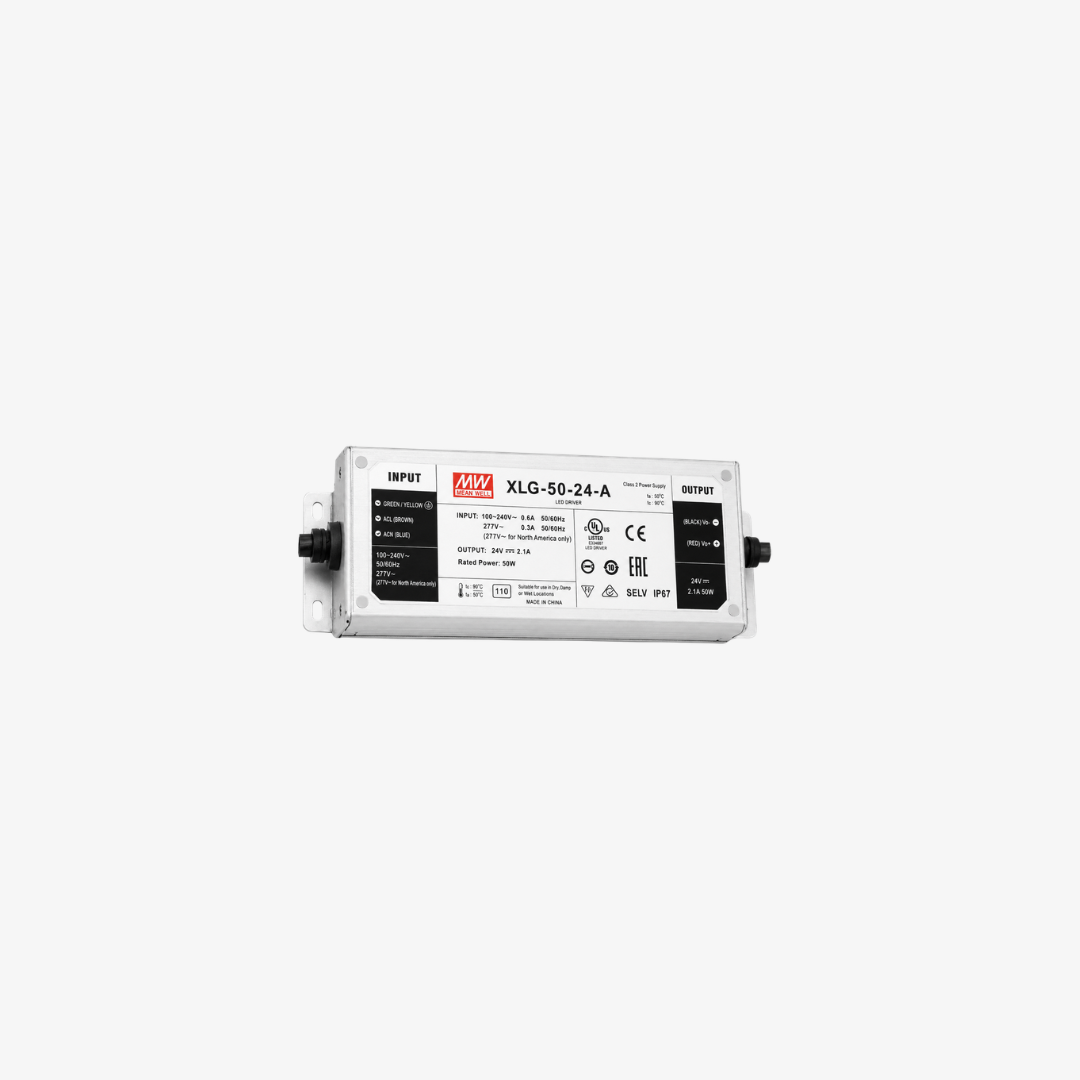

MEAN WELL XLG-50-24-A LED Driver – 24V 50W IP67

The MEAN WELL XLG-50 LED Driver is a compact 24V power supply built for professional LED lighting installations. The XLG-50-24-A supplies 24V DC at up to 2.1A, with a rated output power of 50W.

Its sealed metal enclosure and IP67 protection suit lighting systems installed in demanding indoor or outdoor locations. The wired input and output connections also keep installation straightforward inside luminaires, service compartments and lighting assemblies.

24V DC at 2.1A

The XLG-50-24-A runs at a nominal 24V DC output with a maximum current of 2.1A.

This output works with compatible 24V LED loads such as architectural linear lighting, LED modules, signage and other low-voltage lighting systems. With 50W rated power, the driver fits smaller installations where a compact sealed supply is preferred over a larger high-power unit.

Compact IP67 housing

A rigid metal enclosure surrounds the electronics, while the sealed construction carries an IP67 ingress protection rating.

The driver uses cable leads rather than exposed screw terminals. It can therefore sit close to the luminaire or inside an appropriate installation compartment without requiring a separate terminal block on the driver body.

Natural heat dissipation also eliminates the need for a cooling fan.

Wide mains compatibility

The input section accepts common AC mains supplies and also supports 277VAC operation for North American applications.

The compact format, sealed enclosure and fixed 24V output make the XLG-50-24-A particularly useful for architectural lighting systems where space, environmental protection and stable low-voltage power all matter.

Professional lighting use

The driver fits applications such as architectural linear lighting, façade details, landscape luminaires, signage and other compatible 24V LED systems.

Technical Specifications
