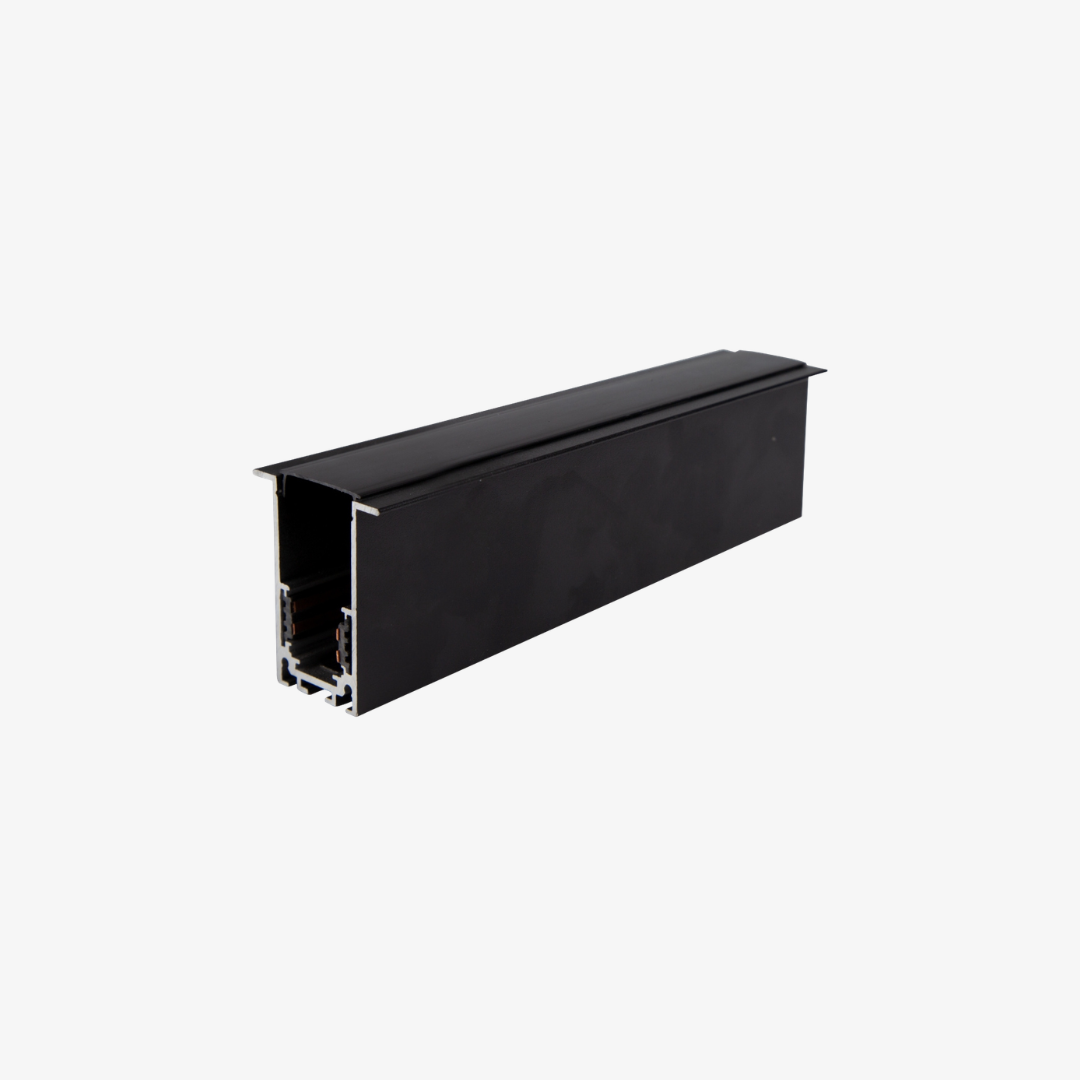

Recessed Magnetic Track with Trim – Type 1

The Recessed Magnetic Track with Trim – Type 1 is designed for architectural magnetic lighting systems that require a clean recessed ceiling finish with a defined trim edge.

The profile measures 26.7 mm wide × 50.35 mm high, giving the track a slim visible width while maintaining a deep internal channel for compatible magnetic lighting modules. Its black finish creates a consistent architectural line and matches naturally with black magnetic spotlights, linear modules and other compatible track fittings.

26.7 × 50.35 mm Recessed Magnetic Track Profile

With a width of just 26.7 mm, the track keeps the ceiling detail narrow and controlled. Meanwhile, the 50.35 mm profile height allows the magnetic lighting system to sit deeper within the ceiling construction.

The integrated side trim forms a clear border around the recessed opening. Therefore, installers have a defined edge to work against when finishing the ceiling.

Unlike a trimless magnetic track, this version intentionally leaves a narrow perimeter visible around the channel.

Magnetic Track with Integrated Trim

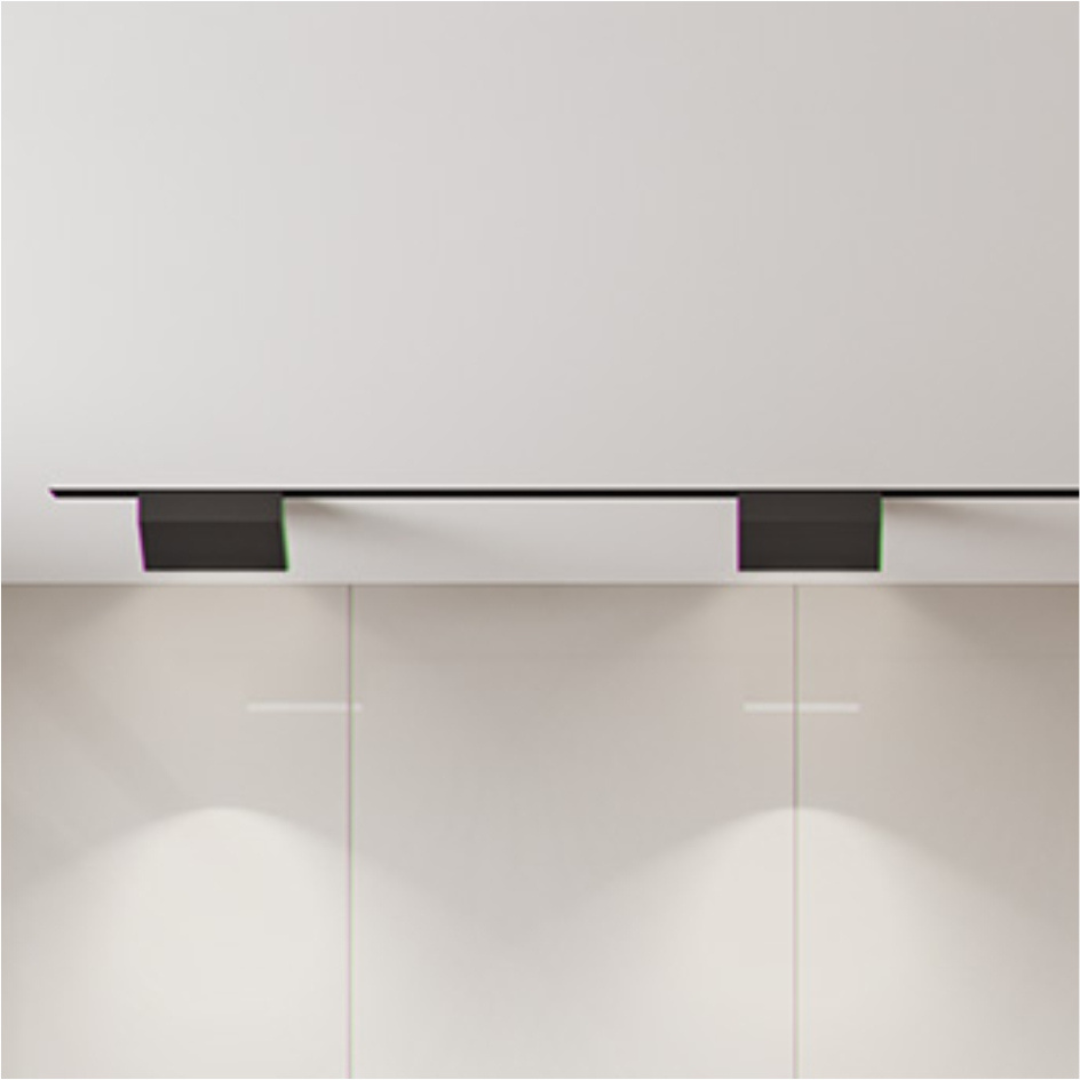

The track sits inside the ceiling while its trim remains visible at the surface. As a result, it combines the clean appearance of recessed lighting with a more straightforward finishing detail.

Its continuous black channel also keeps different compatible magnetic fixtures visually connected along the same lighting line.

Designers can use the system for straight architectural runs or combine several track sections to create structured lighting layouts.

Flexible Architectural Lighting

Compatible magnetic lighting modules can be positioned along the track according to the project layout. For example, the same track system can support different compatible fixture formats for general, accent or directional lighting.

This flexibility suits spaces where the lighting arrangement may need adjustment without changing the main ceiling track.

The profile works particularly well in residential interiors, offices, retail spaces, showrooms and hospitality projects.

Technical Specifications
