Korix Recessed Magnetic Track Rail 34 × 30 mm

Product Description

The korix Recessed Magnetic Track Rail forms the structural channel for an integrated magnetic track lighting system. Its compact 34 × 30 mm profile creates a narrow architectural line while providing the internal track space required for compatible magnetic lighting modules.

Finished in black, the rail sits discreetly within contemporary ceilings and architectural details. The recessed format reduces the visible body of the track and keeps attention on the lighting modules rather than the supporting rail.

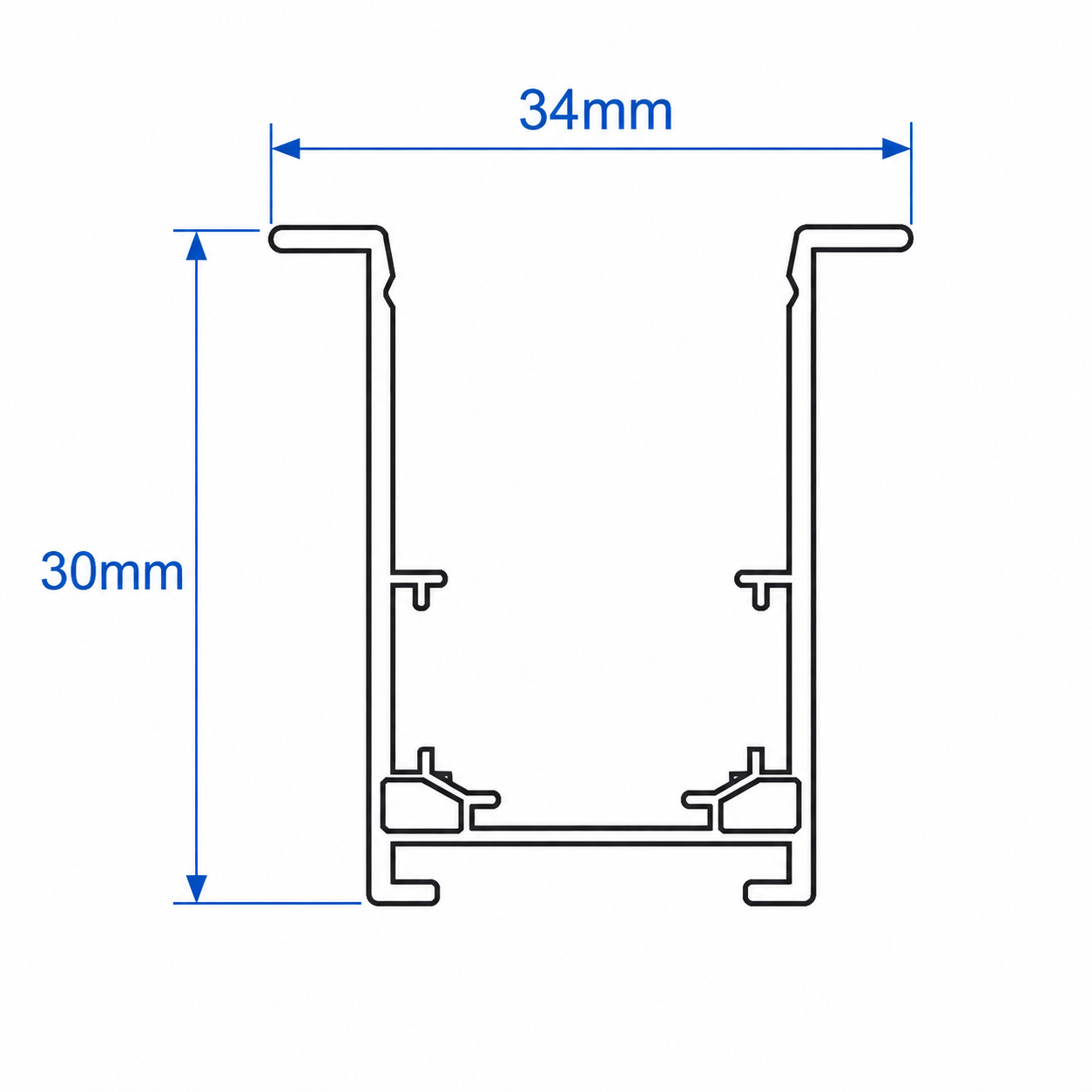

34 × 30 mm compact profile

The rail measures 34 mm in overall width and 30 mm in height.

Its rectangular cross-section creates a defined internal channel for the magnetic lighting system while maintaining a relatively slim external footprint. The proportions suit projects where designers want an integrated track-lighting line without the bulk of conventional surface-mounted track systems.

The upper edges extend across the recessed opening, creating a clean transition between the track and surrounding ceiling surface.

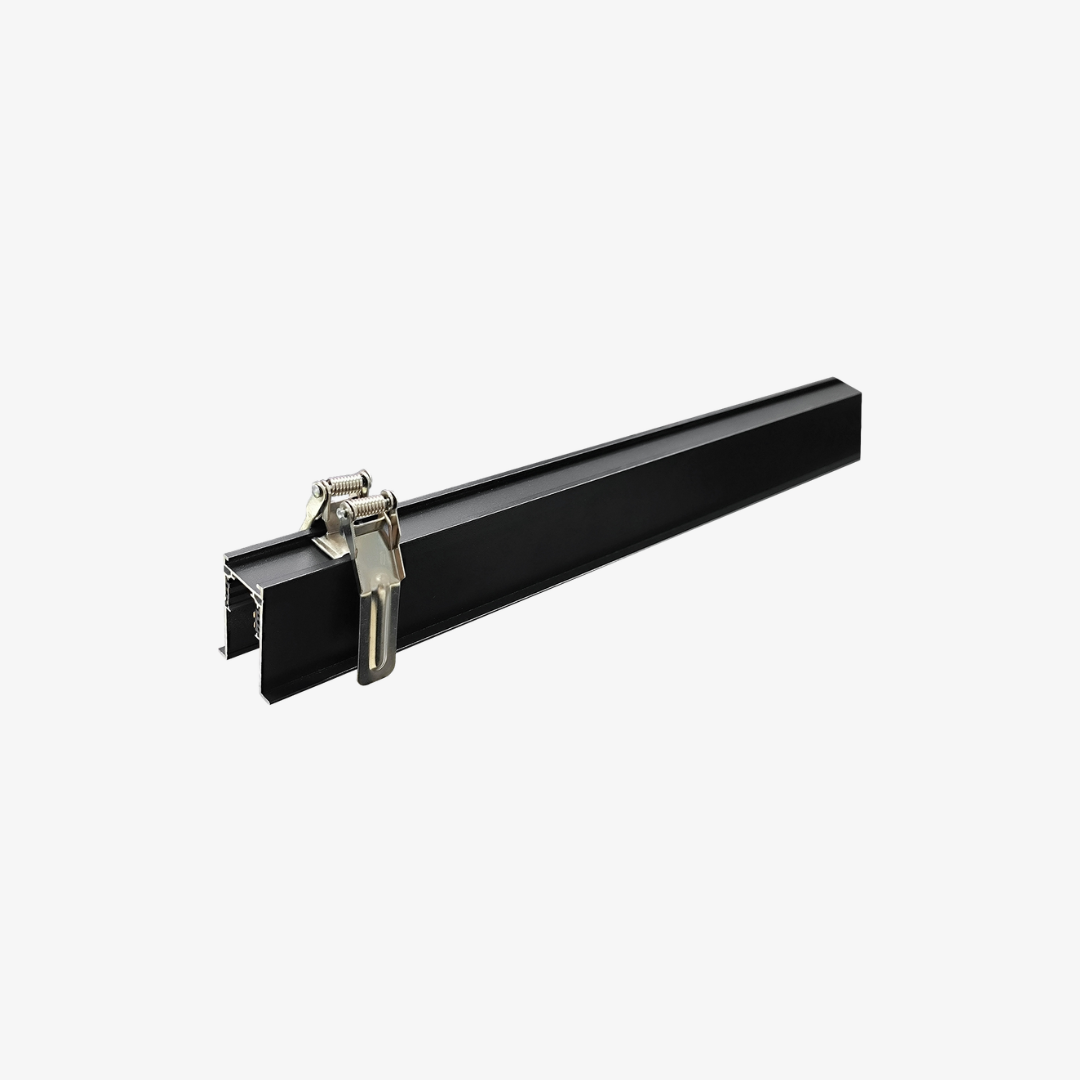

Recessed installation with spring clips

The track rail uses spring mounting clips to secure the profile within the prepared ceiling opening.

Once inserted into the recess, the clips hold the rail against the ceiling structure while the upper edges sit along the finished surface. This mounting arrangement keeps most of the track body concealed and leaves a precise linear opening for the magnetic lighting modules.

Recessed installation works particularly well in interiors where lighting must remain visually integrated with the ceiling architecture.

Built for modular magnetic lighting

The continuous internal channel accepts compatible magnetic track lighting components, allowing different luminaires to sit along the same track line.

Depending on the selected magnetic lighting system, the rail can support combinations of linear modules, grille lights, spotlights and other compatible magnetic fittings. The modular format also allows the lighting arrangement to follow the requirements of each space rather than fixing every luminaire permanently in one position.

Its black interior maintains a consistent appearance with black magnetic modules and keeps the track line visually restrained when viewed from below.

Architectural applications

Use the recessed magnetic rail for continuous lighting lines in residential interiors, offices, retail spaces, hospitality projects and other architectural applications where a clean integrated track system is required.

Straight rail sections can also form part of longer magnetic lighting layouts when the project requires extended linear runs.

Technical Specifications
