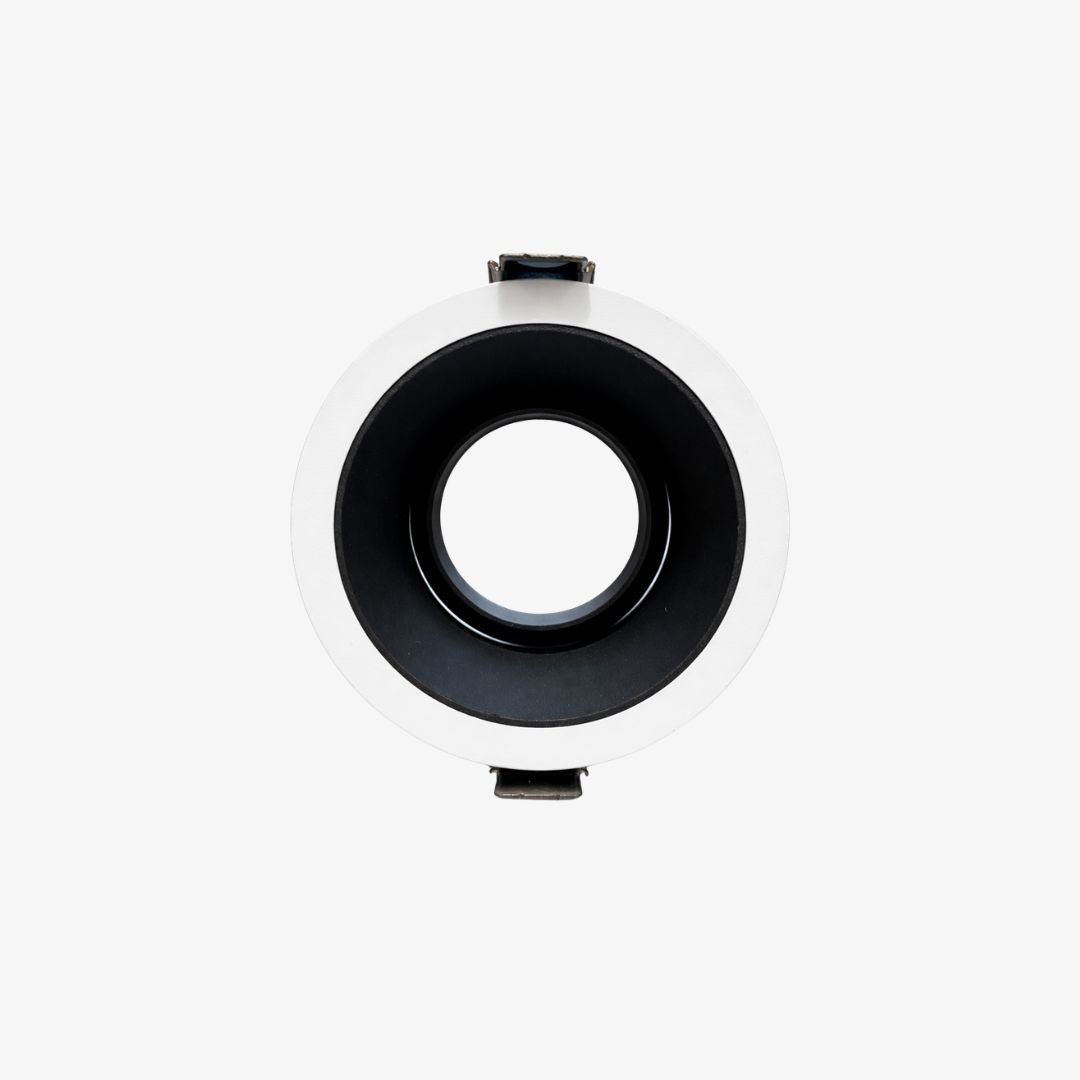

The KORIX Axis Contrast Frame is a high-quality aluminium recessed spotlight frame built around a clean white outer ring and a deep black inner cone. The two-tone construction creates a strong architectural detail while keeping the lamp recessed away from the ceiling surface.
With a Ø100 mm outer diameter and Ø70 mm ceiling cut-out, the frame remains compact while providing enough depth around the light source for a more controlled appearance.
It is compatible with GU10 LED lamps and suitable LED modules, allowing the light source to be selected separately from the frame.
Deep Black Anti-Glare Design
The black internal cone places the lamp deeper inside the fitting.
This recessed position reduces direct visibility of the light source from normal viewing angles and limits bright reflections around the opening. Against a white ceiling, the white outer ring remains discreet while the black centre creates a defined dark-light appearance.
The contrast design works especially well in contemporary residential, hospitality, retail and architectural interiors.
GU10 LED and LED Module Compatible
The Axis Contrast Frame can be used with GU10 LED lamps and compatible LED modules.
Using a replaceable light source gives the lighting designer freedom to select the required colour temperature, beam angle, lumen output and CRI without changing the complete ceiling frame.
Easy Lamp Replacement
The lamp or LED module can be accessed from the front of the fitting.
Routine replacement does not require removing or disturbing the complete ceiling opening. The light source can therefore be changed with minimal risk of damaging the surrounding ceiling finish.
This is especially useful in projects where maintenance access needs to remain simple after the ceiling has been completed.
Ø100 mm Aluminium Frame
The finished outer diameter is Ø100 mm, while installation requires a Ø70 mm cut-out.

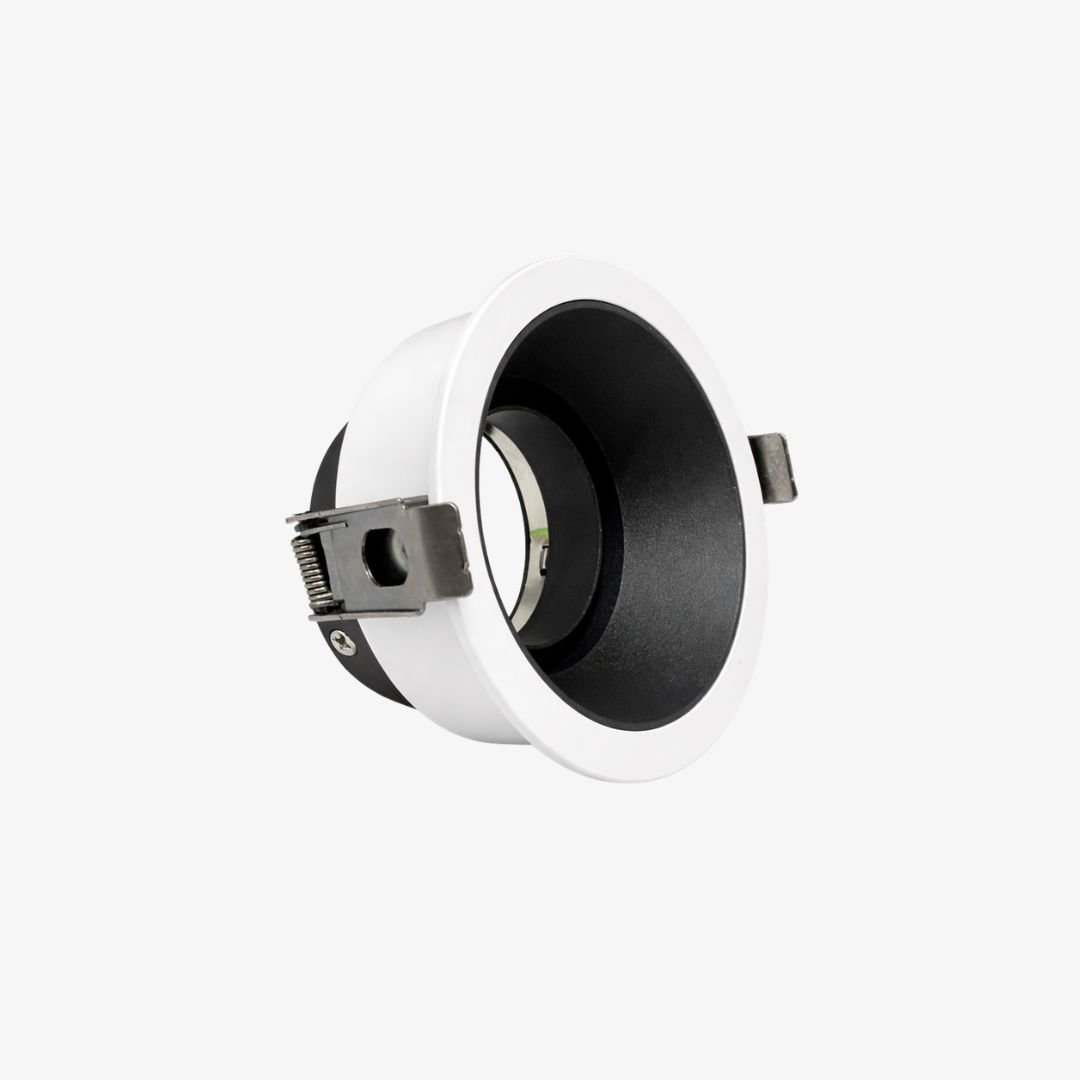

Spring clips secure the fitting inside the prepared ceiling opening.
The body is manufactured from high-quality aluminium, giving the frame a rigid structure and clean finish suitable for repeated architectural ceiling layouts.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Recessed LED Spotlight Frame |
| Series | Axis Contrast |
| Brand | KORIX |
| Shape | Round |
| Outer Diameter | Ø100 mm |
| Ceiling Cut-Out | Ø70 mm |
| Material | High-Quality Aluminium |
| Outer Finish | White |
| Inner Finish | Black |
| Optical Design | Deep Recessed / Anti-Glare |
| Lamp Compatibility | GU10 LED |
| Module Compatibility | Compatible LED Modules |
| Lamp Replacement | Front Accessible |
| Mounting | Spring Clips |
| Installation | Recessed Ceiling |
