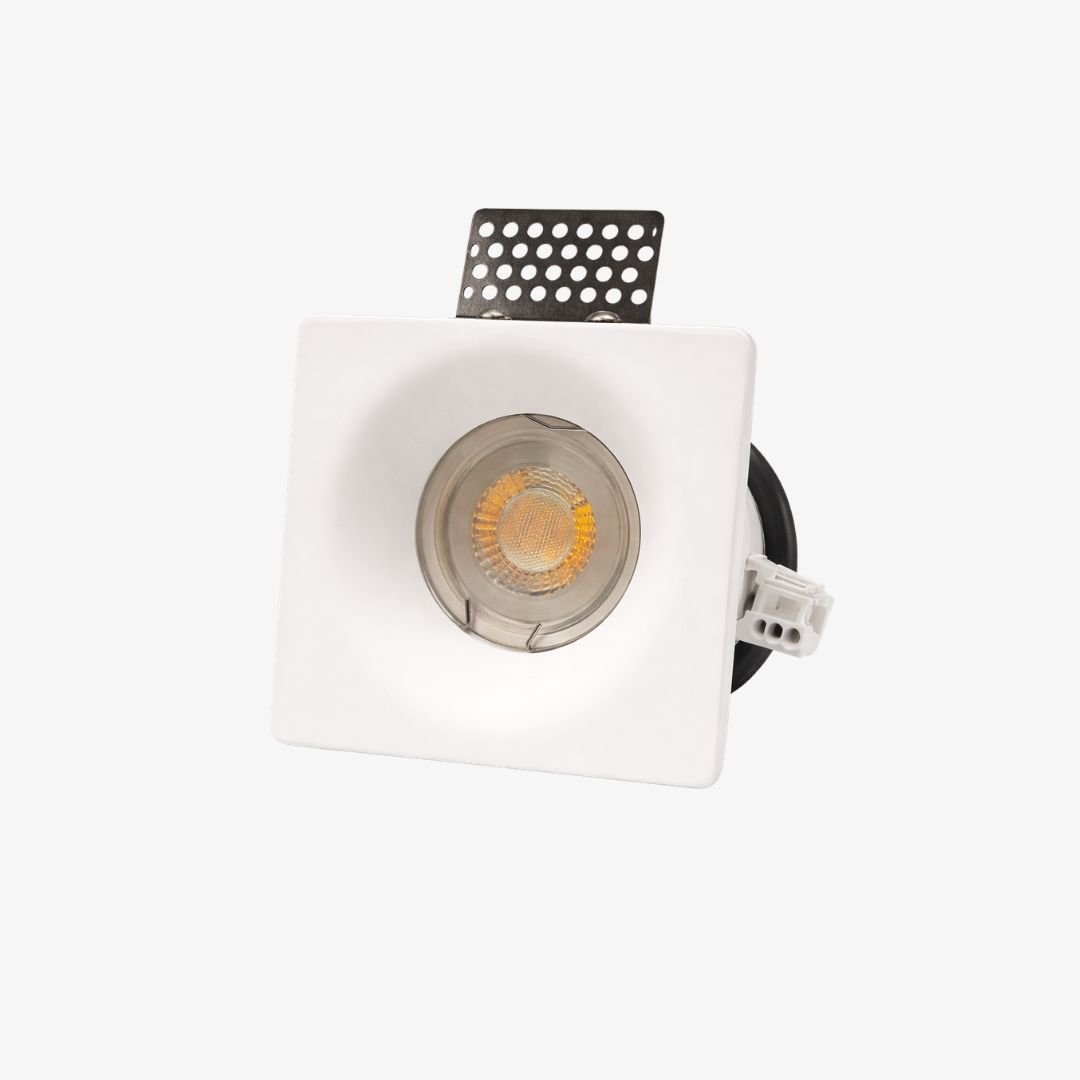

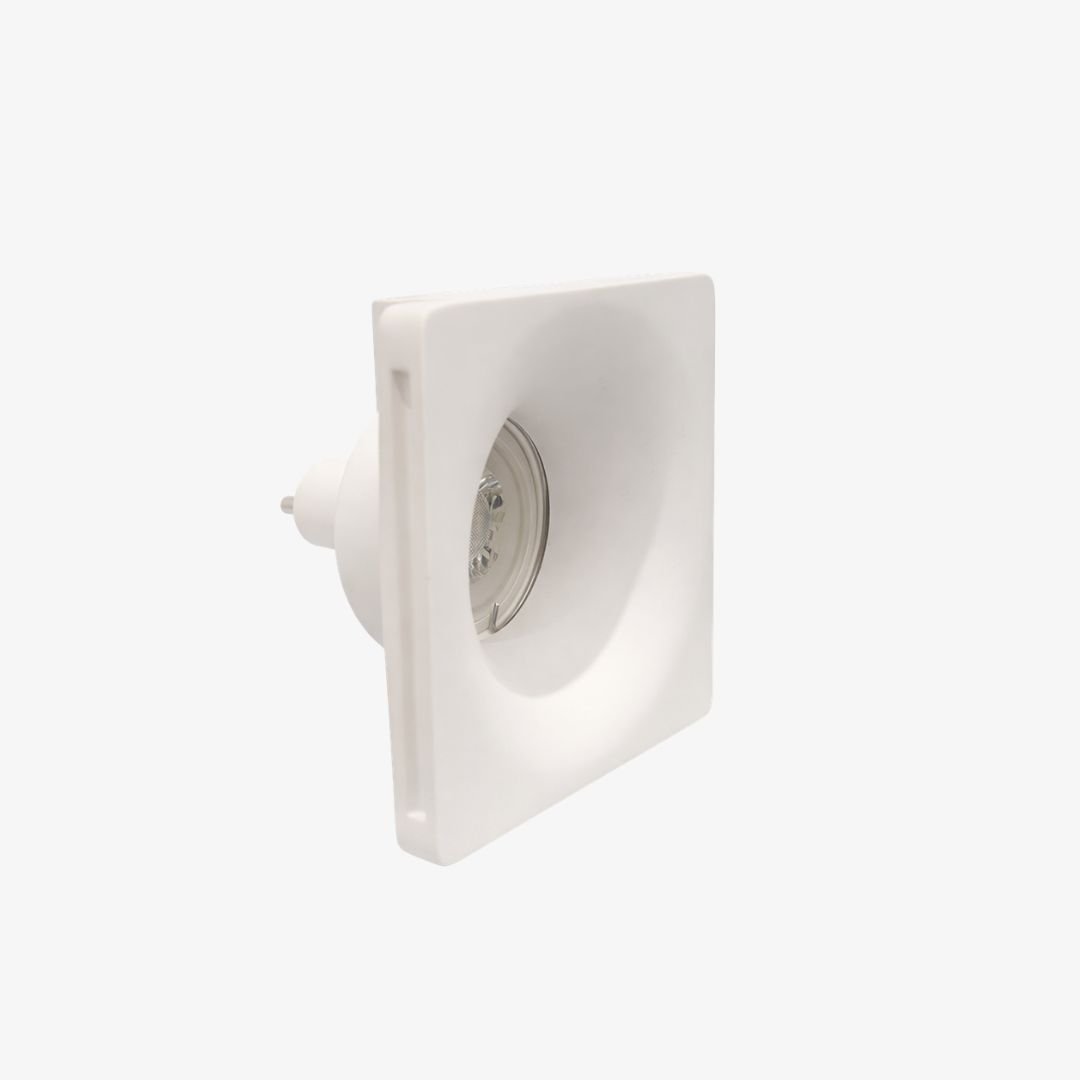

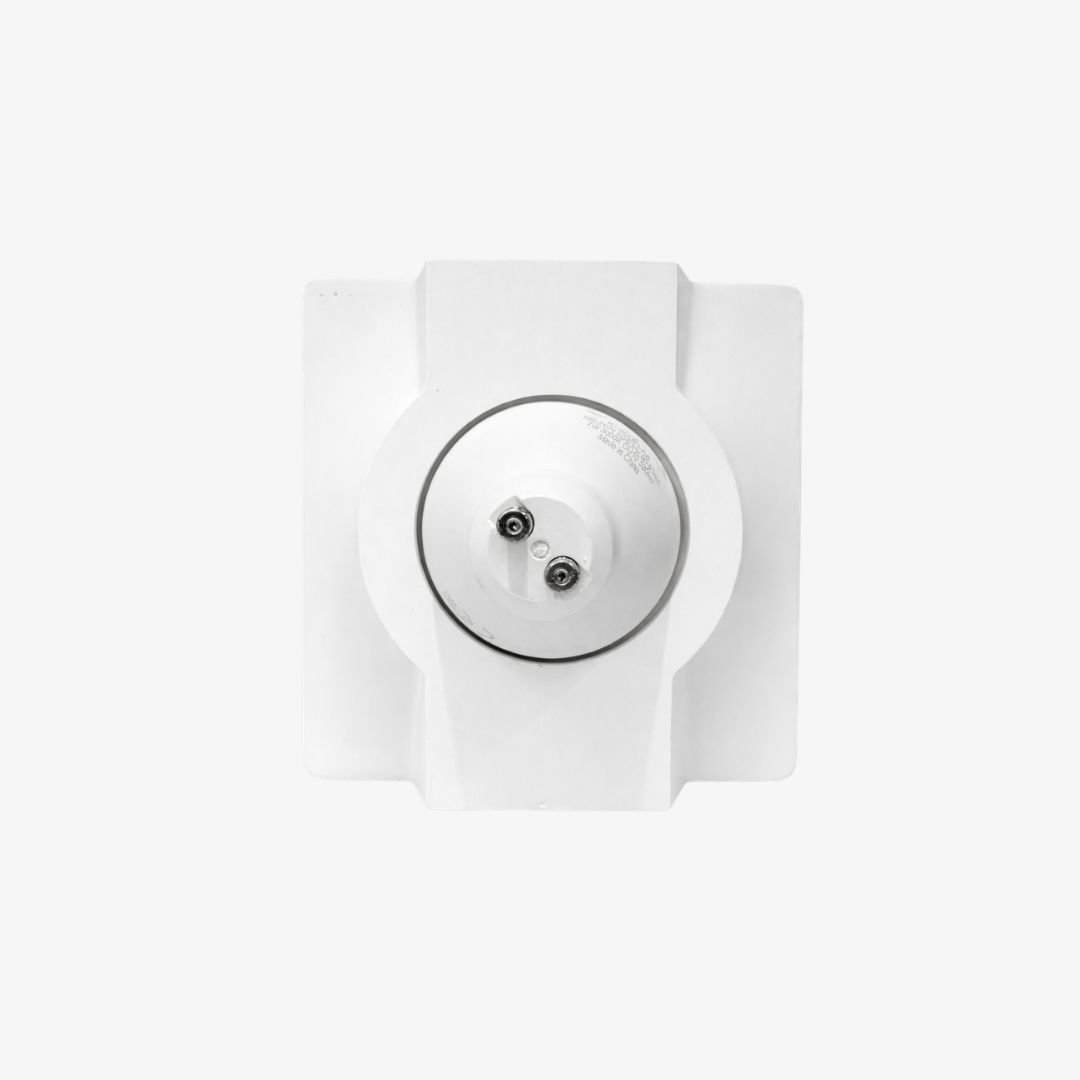

The KORIX Axis Mini Square Frame is a compact gypsum recessed lighting frame designed for GU10 lamps up to 9W. Its clean square face measures 100 × 100 mm, while the central circular opening is Ø50 mm.
The white gypsum construction allows the fitting to blend naturally with plaster and gypsum ceilings. Its simple geometric form works especially well in residential, hospitality, retail and architectural interiors where a discreet recessed spotlight is required.
100 × 100 mm Gypsum Frame
The square face measures 10 × 10 cm, creating a compact ceiling detail around the GU10 light source.
A Ø50 mm central opening accommodates the lamp position, while the overall height is approximately 37 mm.
Main Dimensions
Face Size: 100 × 100 mm
Central Opening: Ø50 mm
Height: 37 mm
Compatible with GU10 Lamps up to 9W
The Axis Mini Square Frame is designed for use with GU10 LED lamps up to 9W.
Using a replaceable GU10 lamp gives the installer flexibility to select the required colour temperature, beam angle and light output according to the project.
The lamp can also be replaced independently without changing the complete frame.
Gypsum Construction
The body is manufactured from gypsum, giving the fitting a clean architectural appearance that integrates well with gypsum-board ceilings.
Its white finish keeps the frame visually discreet, particularly in white ceiling applications.
Compact Architectural Spotlight Frame
The 100 mm square profile is suitable where a smaller ceiling fitting is preferred over larger downlight frames.
Its square exterior combined with the circular GU10 opening creates a simple architectural detail without adding unnecessary visual weight to the ceiling.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Recessed GU10 Frame |
| Product Series | Axis Mini |
| Shape | Square |
| Material | Gypsum |
| Finish | White |
| Face Size | 100 × 100 mm |
| Central Opening | Ø50 mm |
| Overall Height | 37 mm |
| Lamp Compatibility | GU10 LED |
| Maximum Lamp Power | 9W |
| Installation | Recessed Ceiling |
| Lamp Replaceable | Yes |
