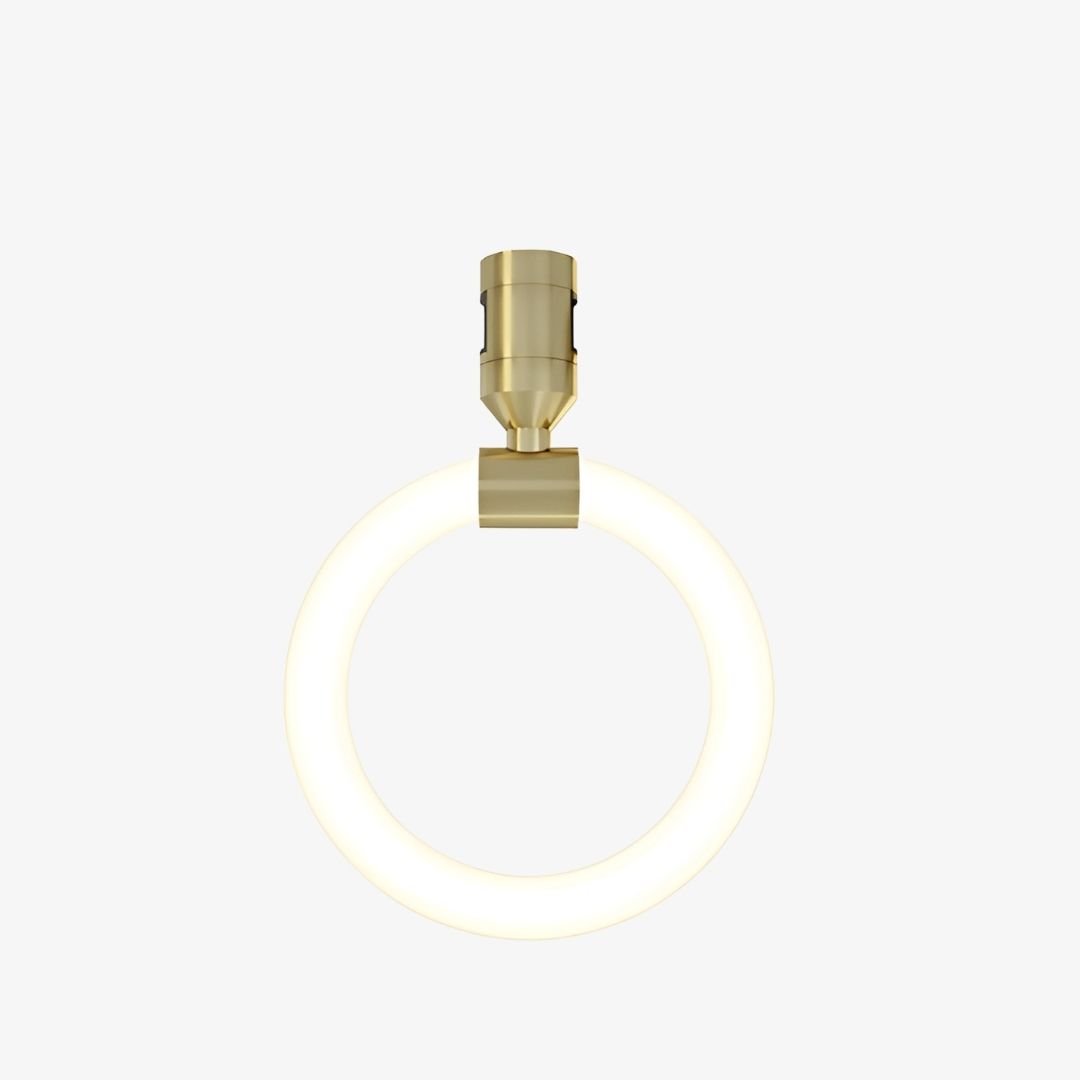

The Linea Orbit Ring Magnetic Light is a decorative magnetic fixture built around a continuous illuminated circular form. Designed for DC24V magnetic track systems, it uses a 10W flexible LED strip with OSRAM 2835 LEDs and a broad 120° light distribution.

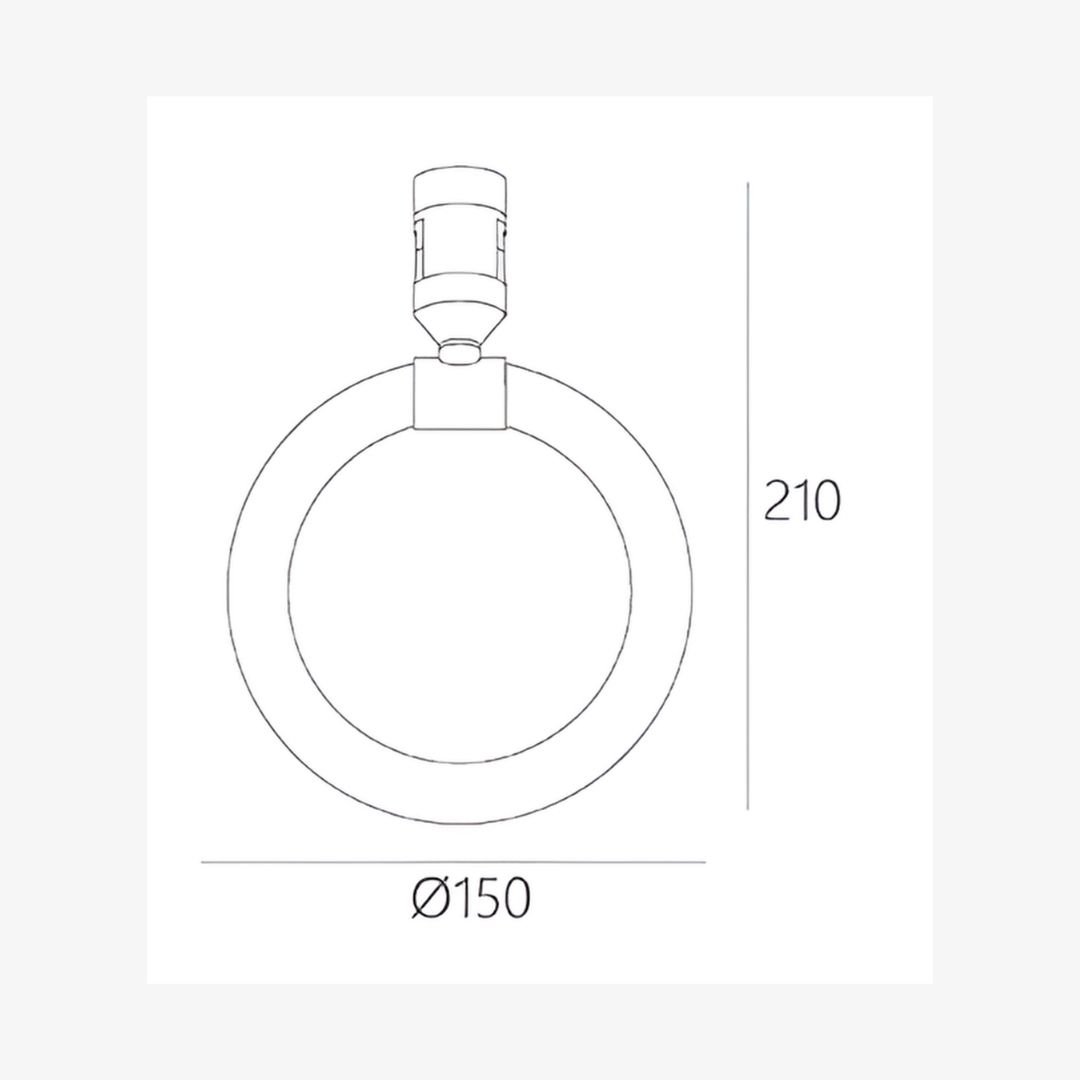

The Ø150 mm illuminated ring creates a clear decorative feature while its open centre keeps the fixture visually light. With overall dimensions of Ø150 × H210 mm, the module remains compact enough for repeated arrangements along a magnetic track.
The metal components use 100% brass and come in gold, black and platinum finishes.
Continuous Illuminated Ring
The circular luminous form defines this magnetic light.
Instead of a solid diffuser or conventional spotlight body, the ring creates an open illuminated outline. The empty centre reduces visual weight while giving the fixture a strong geometric identity.
Designers can use one Ring Magnetic Light as a feature or repeat several modules along the magnetic track to create a rhythmic lighting composition. The circular geometry also contrasts naturally with straight magnetic rails and linear lighting modules.
10W OSRAM 2835 LED Strip
A 10W flexible LED strip with OSRAM 2835 LEDs runs around the illuminated ring.
The flexible strip follows the circular profile, creating a continuous line of light rather than concentrating illumination at a single optical point. Meanwhile, the 120° beam angle spreads the light broadly around the luminous surface.
This makes the fixture particularly suitable for decorative and ambient magnetic lighting rather than focused accent lighting.
Ring Magnetic Light for Layered Lighting
The Ring Magnetic Light works well as the decorative layer within a complete magnetic track lighting system.
Directional magnetic spotlights can highlight artwork, merchandise or architectural details. Magnetic linear modules can provide broader functional illumination, while the illuminated ring introduces a softer sculptural element.
Several rings can also repeat along one track to establish a consistent visual rhythm in living spaces, hospitality interiors, boutiques, reception areas and feature zones.
100% Brass Details
The magnetic connection and metal components use 100% brass.
Available finishes include:
- Gold
- Black
- Platinum
Gold creates a warm contrast against the illuminated ring. Black integrates more discreetly with dark magnetic tracks, while platinum works naturally with cooler contemporary material palettes.
3500K Standard
The standard colour temperature is 3500K.
Optional CCT versions include:
- 2700K
- 3000K
- 3500K – Standard
- 4000K
- 4500K
- 5500K
2700K and 3000K create a warmer decorative atmosphere. Meanwhile, 3500K offers a balanced warm-neutral appearance, while higher CCT options produce a cleaner and more neutral white light.
DC24V Magnetic Track Integration
The Linea Orbit Ring Magnetic Light operates on DC24V and connects to a compatible magnetic track lighting system.
Its compact magnetic adapter allows the decorative ring to form part of the same system as magnetic spotlights, magnetic linear lights and other decorative modules.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Linea Orbit Ring Magnetic Light |
| Product Type | Decorative Ring Magnetic LED Light |
| Metal Material | 100% Brass |
| Finish Options | Gold / Black / Platinum |
| Voltage | DC24V |
| Power | 10W Flexible LED Strip |
| LED Chip | OSRAM 2835 |
| Beam Angle | 120° |
| Standard CCT | 3500K |
| Optional CCT | 2700K / 3000K / 4000K / 4500K / 5500K |
| Dimensions | Ø150 × H210 mm |
| Fixture Form | Continuous Illuminated Ring |
| Installation | Magnetic Track |
Important Note
Note: This product must be used with a compatible power supply and brass magnetic track. For product enquiries, project requirements, availability or pricing, please request a quote from our team.
