The Linea Flex Arc is a decorative flexible magnetic light that creates a continuous curved line of illumination between two magnetic connection points. Designed for DC24V magnetic track systems, it uses an 8W flexible LED strip with OSRAM 2835 LEDs and a wide 120° light distribution.
Its illuminated flexible section forms a soft arc beneath the track, creating a strong contrast with the straight geometry normally associated with magnetic lighting systems. Brass magnetic adapters anchor both ends of the fitting, while gold, black and platinum finish options allow the metal details to coordinate with different interior palettes.

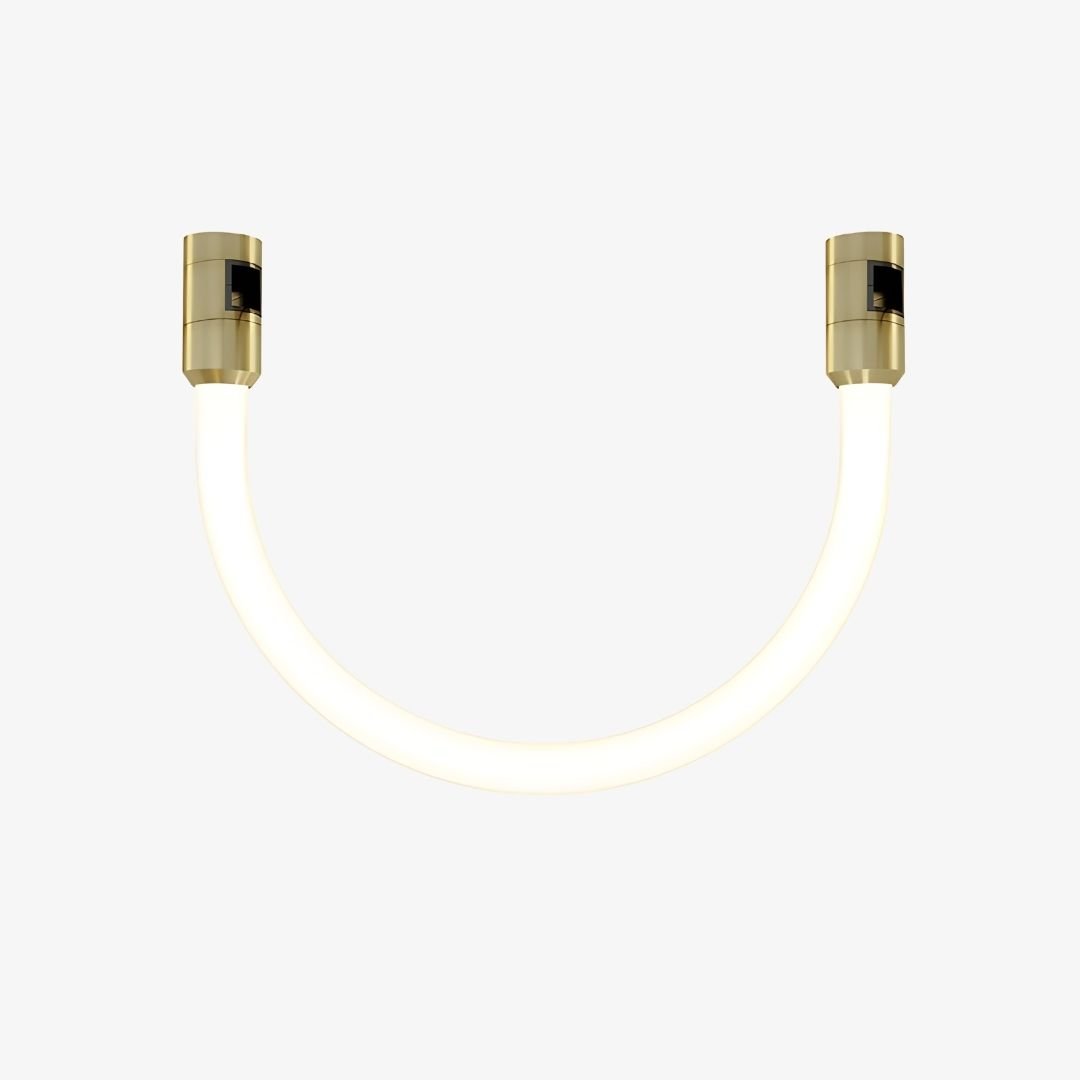

A Continuous Illuminated Curve
The flexible luminous section defines the Linea Flex Arc.
Rather than using a rigid housing, the illuminated body bends naturally between its two magnetic connection points. The result is a smooth U-shaped composition that works as both a light source and a decorative element.
This curved geometry introduces movement into ceilings dominated by straight tracks, linear lights and architectural lines. Designers can use a single module as a feature or repeat several units to create a larger decorative composition.
The dual magnetic connection also gives the fixture a distinctive suspended appearance without using a conventional pendant canopy.
Soft 120° Light Distribution
An 8W flexible LED strip with OSRAM 2835 LEDs produces the illumination.
The 120° beam angle spreads light broadly across the flexible section rather than concentrating it into a narrow beam. Therefore, the fitting works best as an ambient and decorative lighting layer.
For projects that also require focused illumination, Linea Flex Arc can share the magnetic track with directional spotlights, grille modules and linear fixtures. Spotlights can highlight artwork or architectural details, while the Flex Arc adds a softer illuminated form to the overall composition.
Brass Magnetic Connections
The magnetic connection components use 100% brass, with three finish options:
- Gold
- Black
- Platinum
Gold creates a warmer decorative contrast against the illuminated diffuser. Black integrates more quietly with dark magnetic tracks, while platinum works naturally with cooler contemporary finishes.
These metal details remain visible at both ends of the curved light, so the selected finish becomes part of the overall interior specification.
3500K Standard
The standard colour temperature is 3500K.
Additional options include:
- 2700K
- 3000K
- 3500K – Standard
- 4000K
- 4500K
- 5500K
2700K and 3000K create a warmer appearance for residential and hospitality interiors. Meanwhile, 3500K offers a balanced warm-neutral tone. Higher CCT options create a cleaner and more neutral white appearance.
Linea Flex Arc for Layered Magnetic Lighting
The Linea Flex Arc operates on DC24V and connects to the magnetic track at both ends.
Its curved illuminated form works particularly well in living spaces, dining areas, hospitality interiors, boutiques, reception areas and other locations where the lighting itself contributes to the architectural composition.
Designers can also combine it with other fixture types to create several lighting layers on one track system.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Linea Flex Arc |
| Product Type | Flexible Magnetic LED Light |
| Metal Material | 100% Brass |
| Finish Options | Gold / Black / Platinum |
| Voltage | DC24V |
| Power | 8W Flexible LED Strip |
| LED Chip | OSRAM 2835 |
| Beam Angle | 120° |
| Standard CCT | 3500K |
| Optional CCT | 2700K / 3000K / 4000K / 4500K / 5500K |

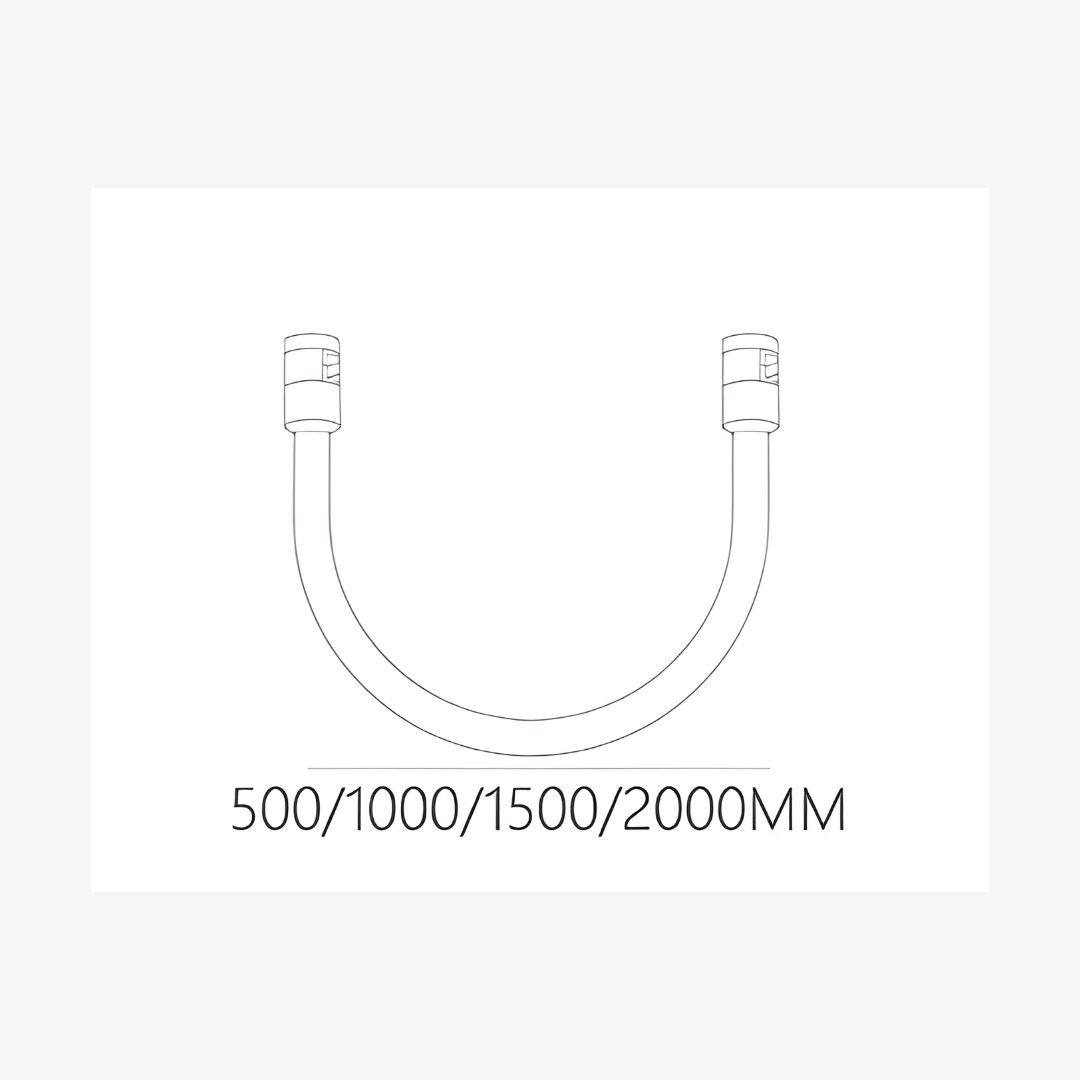

| Fixture Form | Flexible Curved / U-Shaped |
| Connection | Dual Magnetic Connection |
| Installation | Magnetic Track |
Important Note
Note: This product must be used with a compatible power supply and brass magnetic track. For product enquiries, project requirements, availability or pricing, please request a quote from our team.
