The 48V Magnetic Tube Linear LED Track Light combines a slim tubular diffuser with a suspended linear form for decorative and ambient lighting. Its 360° luminous distribution spreads light around the tube, creating a softer effect than directional magnetic spotlights or grille modules.
The fixture comes in 14W and 28W versions, with 3000K, 4000K and 6000K colour temperature options. Moreover, the black aluminium structure creates a clean contrast with the illuminated diffuser and integrates naturally into contemporary track-lighting layouts.
48V Magnetic Tube Linear LED Track Light Design
The tubular light source forms the main visual element of the fixture. Instead of placing the LED inside a conventional spotlight body, the design uses a slim 22 mm linear tube suspended below the track.
Therefore, the luminaire creates a clear architectural line while remaining visually lightweight.
Black end supports frame the illuminated section and connect it to the magnetic system. Meanwhile, the continuous diffuser softens the appearance of the LED source and gives the fixture a more decorative character.

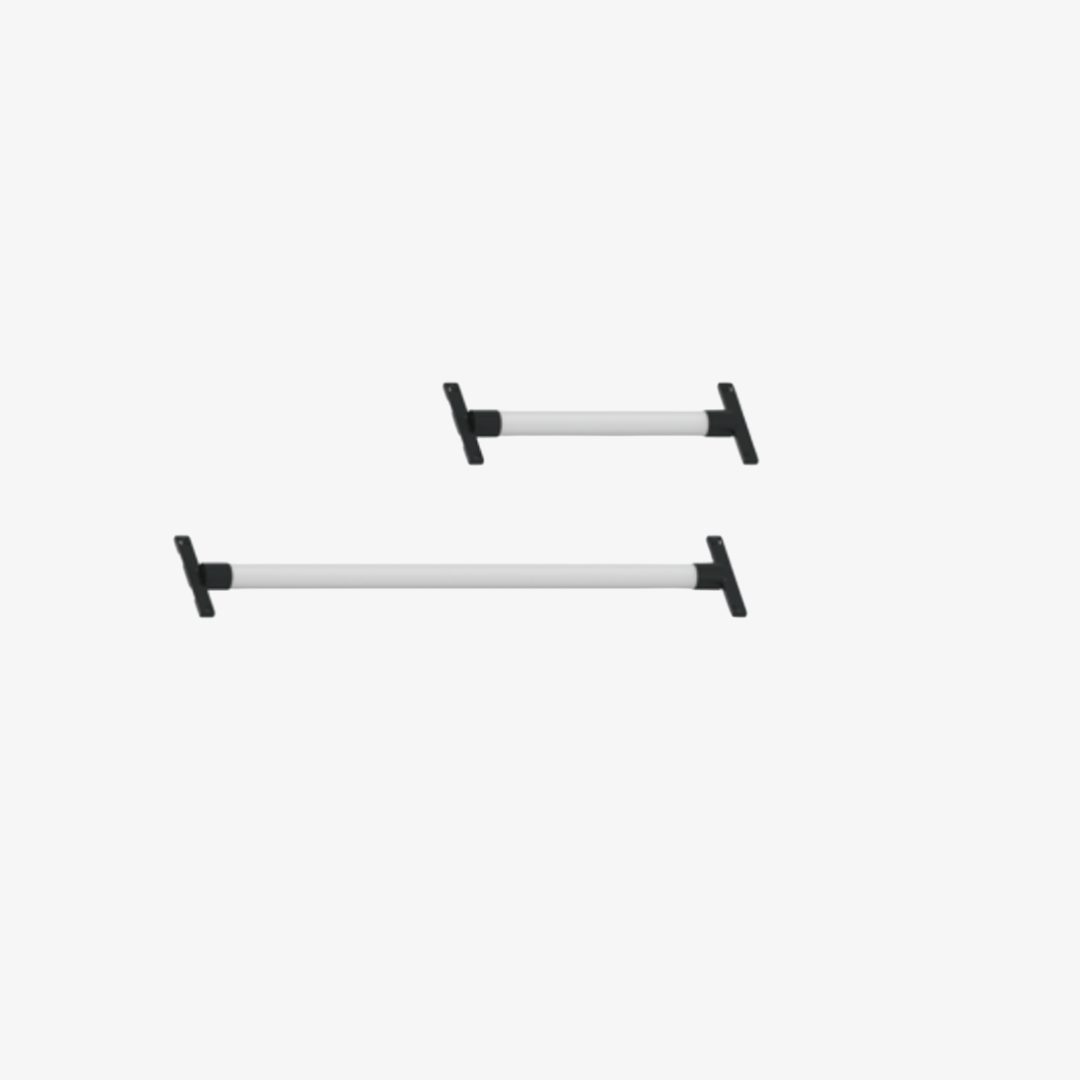

Two lengths support different project scales: a shorter version for compact compositions and a 2000 mm version for longer architectural runs.
360° Tubular Light Distribution
The 48V Magnetic Tube Linear LED Track Light uses a 360° luminous angle, allowing light to spread around the cylindrical diffuser.
Consequently, the fixture creates a very different effect from a narrow-beam magnetic spotlight. Rather than concentrating illumination onto one surface, the glowing tube becomes part of the visual lighting composition itself.
This broad distribution works especially well where designers want a softer ambient layer. In addition, the exposed luminous tube can create a strong linear feature above tables, counters, reception areas or open spaces.
Several modules can also form repeated parallel lines across a larger ceiling composition.
14W and 28W Magnetic Tube Options
The range includes 14W and 28W versions.
The 14W model suits shorter installations, while the 28W version supports the longer tube format. Therefore, designers can maintain the same visual language while selecting the fixture size according to the dimensions of the space.
The narrow 22 mm profile keeps both versions visually light despite their extended linear form.
3000K, 4000K and 6000K Options
Colour temperature options include 3000K, 4000K and 6000K.
Choose 3000K for warmer residential, hospitality or dining environments. Alternatively, 4000K creates a more neutral appearance, while 6000K suits projects that require a cooler white lighting character.
Using the same colour temperature across adjacent magnetic fixtures also creates a more coordinated lighting scheme.
Magnetic Tube Linear LED Track Light for Interior Projects
With an IP20 rating, the fixture suits dry indoor applications.
Its linear suspended form works particularly well in residential interiors, restaurants, hospitality projects, retail spaces, reception areas, showrooms and contemporary offices. Moreover, the illuminated tube introduces a decorative element without requiring a separate conventional pendant system.
Designers can also combine the tube with directional magnetic spotlights or grille modules. In that arrangement, the tube creates the ambient lighting layer while focused fixtures handle accent lighting.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 48V Magnetic Tube Linear LED Track Light |
| Product Type | Magnetic Tube Linear Light |
| Power Options | 14W / 28W |
| Luminous Angle | 360° |
| CCT | 3000K / 4000K / 6000K |
| Profile Size | 22 mm |
| Length Options | Short version / 2000 mm |
| Material | Aluminium |
| Finish | Black |
| IP Rating | IP20 |
| Application | Indoor Lighting |
